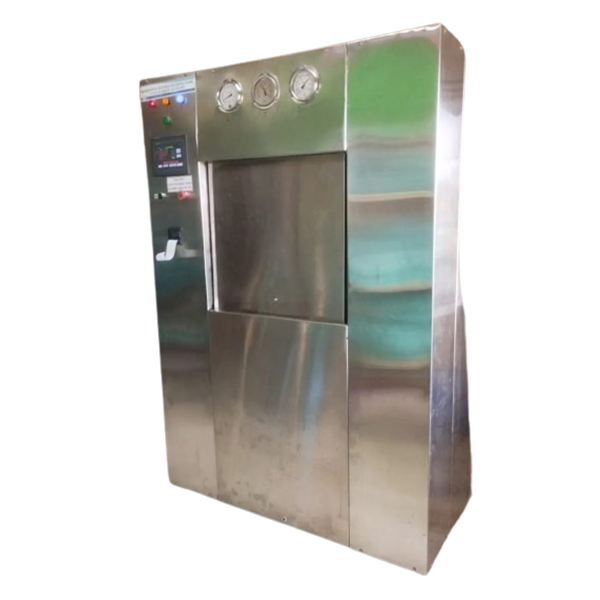

Sliding Door Autoclave

1. Standard Cycle:
   • Heat up- star hold (121C)- exhaust
   • Heat up- star hold (134C)- exhaust
   • The technique uses the method of gravity air removal to ensure uniform steam distribution and penetration. Steam trap equipped with air vent ensure maximum air removal.
   • Useful for sterilization of glass containers. i.e. ampules, vials glass bottles etc.
   • It is also use full for sterilization of glass wares, utensil, vessels, instruments rubber articles linen etc. in Laboratories and hospitals.
2. HP HV Cycle:
   1. 3 Pre ster vacuum pulses-heat up-ster hold exhaust
   2. 3 Pre ster vacuum pulses-heat up-ster hold-exhust-post ster vacuum pulsing or drying This technique uses near 100% air removal from sterilization chamber because of the absence of air pockets i.e cold spots.This technique increases the penetration of steam in porous products from which removal of air is difficult.Vacuum drying at the end of sterilizer hold period ensures drying of the material has been sterilized.This Cycle is useful for garments, fabric, drying rubber bungs vessels machine parts. etc.
3. Leak Test Cycle:
   • For periodic testing of door integrity and pipeline connections detecting leakage ampoules.
4. Another HP HV:
   • Cycle with post vacuum pulses can be provided, if required, for special purpose.
5. General Information:
   • SS construction with internal contact parts of ss 316.
   • SS construction with jacket and non-contact parts of Ss304
   • The unit is mounted on study SS tubular stand with level adjustment facility.
   • The unit is mounted on study SS tubular stand with level adjustment facility.
   • No Drives are required. For sliding door movement, pneumatic cylinders are used.
   • Autoclaves with hinged doors have mechnical pressure locking device which prevents opening of doors under pressure. The quick throw lever mechanism ensures further safety.
   • Autoclaves with hinged doors have mechnical pressure locking device which prevents opening of doors under pressure. The quick throw lever mechanism ensures further safety.
   • The unit has two safety valves, on the chamber and one on the jacket, besides having a pressure switch shuts off steam supply to the chamber.
   • PLC's used are imported and compatible with P.C SCADA system can be incorporated for remote monitoring or monitoring controlling and data acquisition if required (Optional).
   • Electrical switchgear of SIEMENS/L&T/TEKNIK make. cable of ISI brand.
6. Utilities:
   • Rw steam for jacket supply through your P.R.V
   • Pure steam for chamber supply through PSG (User's Scope)
   • Compresses air- through FRL for instrumentation, vacuum through water ring vacuum
   • pump, single phase electric supply for control panel and instruments.
7. Technical Specification Of Steam Sterilizer:

   1. Chamber
   Type	Rectangular
   M O C contact parts	SS316
   2. Jacket
   Type	Rectangular
   M O C	SS 304
   3. Doors
   Type	Double Door, Hinged
   M O C contact parts	SS316
   Sealing effective sealing	Soiled square door gasket provided for
   Interlock	Safety interlocks provided.
   4. Insulation	Resin Bonded Glass wool-50mm
   Outer Cover	S.S 304 1mm
   5. Operating Parameters
   Temperature	1314C Max
   Pressure	2.1 kg/cm
   Vacuum	4 kg/cm

8. Scope Of Supply For Steam Sterilizer
   • Pneumatically actuated valve : 1 Set
   • Spring loaded safety valves : 1 Set
   • Spring loaded safety valves : 1 Set
   • Spring loaded safety valves : 1 Set
